DV-1 manufacturer LCD screen touch sreen viscometers

DV-1 digital viscometer

Feature:
Speed of DV-1 digital rotational viscometer is given by programmable motor in accordancewith relative program; and rotation of rotor is driven by torque sensor. When rotor suffers from torsion of viscous
resistance and balance force of the torque sensor and achieves balance,the indication displayed after processing by microprocessor is the liquid viscosity. Therefore, it brings great convenience to users. Fast operation, humanized display screen and 4standard rotors.

Function:
DV-1 digital rotational viscometer is a digital instrument to monitor and control quality stability in production process with random temperature display,auto-search and RS232interface designed with the microprocessing technology of single-chip microcomputer,which is applied to solvent adhesive, emulsion, biochemical preparations, paint, petroleum coatings,cosmetics, ink, paper pulp and starch.

Measurement range: 1~1x 10^6 mpa.s

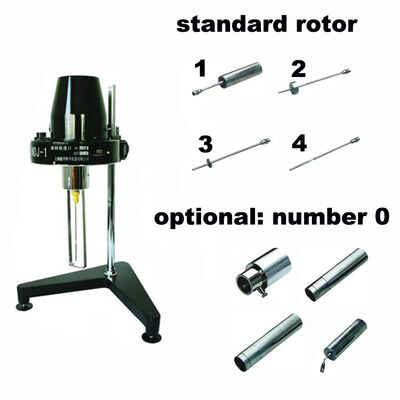

Rotor: No.1, 2, 3, 4
Measurement tolerance: ±2% (newton liquid)
Rotating speed of rotor: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 circle/min
Working condition: temperature 5~35℃, relative humidity should be no more than 80%
Outline size: 100x140x170mm (not include the base and stand)
Packing size: 475x220x375mm
Net weight: 2kgs (not include the base and stand)
