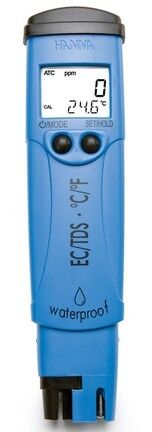

When the original DiST® (Dissolved Solids Tester) was first introduced, conductivity and total dissolved solids measurements became easy and affordable. The DiST’s ease of use, in combination with it’s affordability, made it the standard in EC and TDS measurement. Hanna continues the standard in EC and TDS testing with the DiST®5 and DiST®6.

These testers include features such as: a replaceable graphite electrode, adjustable TDS ratio, °C or °F measurement, Automatic Temperature Compensation (ATC) with adjustable β, battery level indicator, stability indicator, automatic shut-off and automatic calibration.

The graphite conductivity electrode offers greater accuracy by resisting contamination by salt deposits in the sample. All of these features are packed in a floating, waterproof casing. These 3-in-1 testers are unmatched in EC/TDS/ temperature measurements.

Features at-a-glance

• Waterproof and designed to float
• Automatic Temperature Compensation
• HOLD button to freeze readings on the display
• BEPS Alerts the user of low battery power that could adversely affect readings

Specifications

Parameter	Conductivity, TDS, Temperature



Conductivity Range	0.00 to 20.00 mS/cm
Conductivity Resolution	0.01 mS/cm
Conductivity Accuracy	±2% F.S.
TDS Range	0.00 to 10.00 g/L (ppt)
TDS Resolution	0.01 g/L (ppt)
TDS Accuracy	±2% F.S.
Temperature Range	0.0 to 60.0°C / 32.0 to 140.0°F
Temperature Resolution	0.1°C / 0.1°F
Temperature Accuracy	±0.5°C /±1°F
EC/TDS Calibration	automatic, one point at 12.88 mS/cm or 6.44 g/L (ppt)
Temperature Compensation	automatic, with β adjustable from 0.0 to 2.4% / °C
TDS Conversion Factor	0.45 to 1.00
Battery Type / Life	1.5V (4) / approx. 100 hours of continuous use, auto-off after 8 minutes of non-use
Electrode/Probe	HI73311 replaceable EC/TDS graphite electrode (included)
Environment	0 to 50°C (32 to 122°F); RH max 100%
Dimensions	163 x 40 x 26 mm (6.4 x 1.6 x 1.0’’)
Weight	100 g (3.5 oz.)
Ordering Information	HI98311 (DiST®5) and HI98312 (DiST®6) are supplied with HI73311 EC/TDS probe, HI73128 probe removal tool, batteries and instructions.
